Lenovo ThinkSystem SR630 server Rack (1U) Intel Xeon Silver 4208 2.1 GHz 32 GB DDR4-SDRAM 750 W
SKU
7X02A0HFEA
- Intel Xeon Silver 4208 (11MB Cache, 2.1GHz)
- 32GB (2933MHz) DDR4-SDRAM (1 x 32)
Future defined data center
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*
Flexible storage

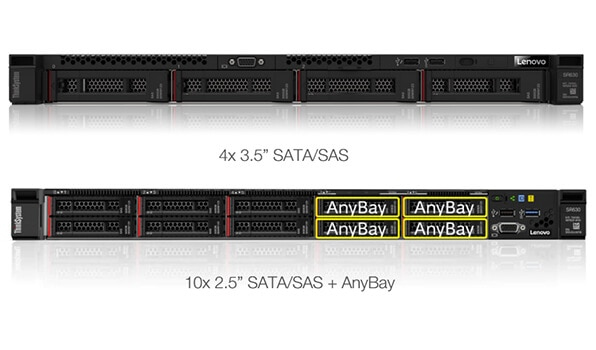

Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Built for business, with business-critical versatility
The versatile, highly reliable 1U ThinkSystem SR630 2P rack server is designed to handle most data center workloads, from IT infrastructure and HPC to cloud and hyperconverged.
The versatile, highly reliable 1U ThinkSystem SR630 2P rack server is designed to handle most data center workloads, from IT infrastructure and HPC to cloud and hyperconverged.
| Processor | |
|---|---|
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Processor cache | 11 MB |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.2 GHz |
| Number of processors installed | 1 |
| Processor model | 4208 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C624 |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 2933 MHz |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Storage | |
| Supported RAID controllers | 9350-8i |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Optical drive type | No |
| Graphics | |
| On-board graphics card model | Matrox G200e |
| On-board graphics card | Yes |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (1U) |
| Product colour | Black, Metallic |
| Performance | |
| Compatible operating systems | Microsoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64TSP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3 |
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) | Yes |
| Harmonized System (HS) code | 84714100 |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64TSP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3 |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
| Number of redundant power supplies installed | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply input frequency | 50 - 60 Hz |
| Power supply | 750 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating altitude | 0 - 3050 m |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Trusted Platform Module (TPM) | Yes |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Rack mounting | Yes |
| Chassis type | Rack (1U) |
| Management features | |
| Performance management | XClarity Enterprise |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
| Width | 435 mm |
| Height | 43 mm |
| Depth | 750 mm |
